Windows Server 2016 Datacenter - Server Manager 0x800f0805 Error

Hi Peter,

Please find attached the latest fixlog and CBS, below is the output from sfc and DISM:

C:\windows\system32>sfc /scannow

Beginning system scan. This process will take some time.

Beginning verification phase of system scan.
Verification 100% complete.

Windows Resource Protection did not find any integrity violations.

C:\windows\system32>Dism /Online /Cleanup-Image /RestoreHealth

Deployment Image Servicing and Management tool
Version: 10.0.14393.4169

Image Version: 10.0.14393.4169

[==========================100.0%==========================]
Error: 1734

The array bounds are invalid.

The DISM log file can be found at C:\windows\Logs\DISM\dism.log


Attachments

Step 1:
Warning: This script was written specifically for this user, for use on that particular machine. Do not run this script on another machine.
  1. Download the attachment fixlist.txt and save it to your desktop.
  2. Right-click on FRST64.exe and select "Run as administrator".
  3. Press the Fix button.
  4. The tool will now process fixlist.txt.
  5. If for some reason the tool needs a restart, please make sure you let the system restart normally. After that let the tool complete its run.
  6. When finished, a log called Fixlog.txt will appear in the same directory the tool is run from.
  7. Attach the logfile Fixlog.txt to your next reply.

Step 2:
Restart the machine.
Run the command sfc /scannow in an elevated commandprompt and report the result.
If it fails, copy the file C:\Windows\Logs\CBS\cbs.log to your desktop.
Zip the copied file and attach the zipped cbs.log to your next reply.


Attachments

Hi Peter,

Latest CBS and fixlog attached, below is the output from SFC and DISM:

C:\windows\system32>sfc /scannow

Beginning system scan. This process will take some time.

Beginning verification phase of system scan.
Verification 100% complete.

Windows Resource Protection did not find any integrity violations.

C:\windows\system32>Dism /Online /Cleanup-Image /RestoreHealth

Deployment Image Servicing and Management tool
Version: 10.0.14393.4169

Image Version: 10.0.14393.4169

[==========================100.0%==========================]
Error: 1734

The array bounds are invalid.

The DISM log file can be found at C:\windows\Logs\DISM\dism.log


Attachments

Step 1:
Warning: This script was written specifically for this user, for use on that particular machine. Do not run this script on another machine.
  1. Download the attachment fixlist.txt and save it to your desktop.
  2. Right-click on FRST64.exe and select "Run as administrator".
  3. Press the Fix button.
  4. The tool will now process fixlist.txt.
  5. If for some reason the tool needs a restart, please make sure you let the system restart normally. After that let the tool complete its run.
  6. When finished, a log called Fixlog.txt will appear in the same directory the tool is run from.
  7. Attach the logfile Fixlog.txt to your next reply.

Step 2:
Restart the machine.
Run the command sfc /scannow in an elevated commandprompt and report the result.
If it fails, copy the file C:\Windows\Logs\CBS\cbs.log to your desktop.
Zip the copied file and attach the zipped cbs.log to your next reply.


Attachments

Hi Peter,

Latest CBS and Fixlog attached, below is the output from sfc and DISM:

C:\windows\system32>sfc /scannow

Beginning system scan. This process will take some time.

Beginning verification phase of system scan.
Verification 100% complete.

Windows Resource Protection did not find any integrity violations.

C:\windows\system32>Dism /Online /Cleanup-Image /RestoreHealth

Deployment Image Servicing and Management tool
Version: 10.0.14393.4169

Image Version: 10.0.14393.4169

[==========================100.0%==========================]
Error: 1734

The array bounds are invalid.

The DISM log file can be found at C:\windows\Logs\DISM\dism.log


Attachments

Step 1:
Warning: This script was written specifically for this user, for use on that particular machine. Do not run this script on another machine.
  1. Download the attachment fixlist.txt and save it to your desktop.
  2. Right-click on FRST64.exe and select "Run as administrator".
  3. Press the Fix button.
  4. The tool will now process fixlist.txt.
  5. If for some reason the tool needs a restart, please make sure you let the system restart normally. After that let the tool complete its run.
  6. When finished, a log called Fixlog.txt will appear in the same directory the tool is run from.
  7. Attach the logfile Fixlog.txt to your next reply.

Step 2:
Restart the machine.
Run the command sfc /scannow in an elevated commandprompt and report the result.
If it fails, copy the file C:\Windows\Logs\CBS\cbs.log to your desktop.
Zip the copied file and attach the zipped cbs.log to your next reply.


Attachments

Hi Peter,

Please find attached the latest CBS, Fixlog and Components Scannner, below is the output from sfc and DISM:

C:\windows\system32>sfc /scannow

Beginning system scan. This process will take some time.

Beginning verification phase of system scan.
Verification 100% complete.

Windows Resource Protection did not find any integrity violations.

C:\windows\system32>Dism /Online /Cleanup-Image /RestoreHealth

Deployment Image Servicing and Management tool
Version: 10.0.14393.4169

Image Version: 10.0.14393.4169

[==========================100.0%==========================]
Error: 1734

The array bounds are invalid.

The DISM log file can be found at C:\windows\Logs\DISM\dism.log


Attachments

Step 1:
Warning: This script was written specifically for this user, for use on that particular machine. Do not run this script on another machine.
  1. Download the attachment fixlist.txt and save it to your desktop.
  2. Right-click on FRST64.exe and select "Run as administrator".
  3. Press the Fix button.
  4. The tool will now process fixlist.txt.
  5. If for some reason the tool needs a restart, please make sure you let the system restart normally. After that let the tool complete its run.
  6. When finished, a log called Fixlog.txt will appear in the same directory the tool is run from.
  7. Attach the logfile Fixlog.txt to your next reply.

Step 2:
Restart the machine.
Run the command sfc /scannow in an elevated commandprompt and report the result.
If it fails, copy the file C:\Windows\Logs\CBS\cbs.log to your desktop.
Zip the copied file and attach the zipped cbs.log to your next reply.


Attachments

Hi Peter,

Latest CBS and fixlog attached, below is the output from SFC and DISM:

C:\windows\system32>sfc /scannow

Beginning system scan. This process will take some time.

Beginning verification phase of system scan.
Verification 100% complete.

Windows Resource Protection did not find any integrity violations.

C:\windows\system32>Dism /Online /Cleanup-Image /RestoreHealth

Deployment Image Servicing and Management tool
Version: 10.0.14393.4169

Image Version: 10.0.14393.4169

[==========================100.0%==========================]
Error: 1734

The array bounds are invalid.

The DISM log file can be found at C:\windows\Logs\DISM\dism.log


Attachments

Step 1:
WARNING! The following fix is specific to the user's system in this thread only. No one else should follow these instructions, as it could damage your system.
  • Download the attachment SFCFix.zip and save it on your desktop.
  • Save any work you have open, and close all programs.
  • Drag the SFCFix.zip file over the SFCFix.exe executable and release it.
  • SFCFix will launch, let it complete.
  • Once done, a file will appear on your desktop, called SFCFix.txt.
  • Open the file, then copy and paste its content in your next reply.

Step 2:
Restart the machine.
Run the command sfc /scannow in an elevated commandprompt and report the result.
If it fails, copy the file C:\Windows\Logs\CBS\cbs.log to your desktop.
Zip the copied file and attach the zipped cbs.log to your next reply.


Attachments

Hi Peter,

Please find attached the SCFFix.txt and latest CBS and ComponentsSecanner, below is the output from sfc and DISM:

C:\windows\system32>sfc /scannow

Beginning system scan. This process will take some time.

Beginning verification phase of system scan.
Verification 100% complete.

Windows Resource Protection did not find any integrity violations.

C:\windows\system32>Dism /Online /Cleanup-Image /RestoreHealth

Deployment Image Servicing and Management tool
Version: 10.0.14393.4169

Image Version: 10.0.14393.4169

[==========================100.0%==========================] The restore operation completed successfully.
The operation completed successfully.


Attachments

Looks good. We finally got rid of error 1734.
Try to install following update:

Install Update with DISM
  1. Download the update MSU here: https://catalog.s.download.windowsu..._62314b87d461b2e0005bc272b637be4b86a2753b.msu
  2. Copy the MSU file to a convenient location (such as C:\temp).
  3. Click on the Start button and in the search box, type Command Prompt
  4. When you see Command Prompt on the list, right-click on it and select Run as administrator
  5. When command prompt opens, copy and paste the following commands into it, press enter after each

    cd C:\temp
    replace C:\temp with your path if different

    expand windows10.0-kb5017095-x64_62314b87d461b2e0005bc272b637be4b86a2753b.msu -f:* C:\temp

    DISM.exe /Online /Add-Package /PackagePath:C:\temp\windows10.0-kb5017095-x64.cab

  6. You should receive the message:
    The operation completed successfully.
    Make sure to allow the computer to restart if prompted.
  7. If you receive any other message:
    Post a screenshot of the Commandprompt window.
    Zip and attach the file C:\Windows\Logs\CBS\CBS.log

Hi Peter,

Yes it took some effort clearing out the registry to get the Error to clear :-), it looks like we are getting closer to getting this Server back 🤞

Attached is the latest CBS and DISM logs, output from DISM:

C:\Users\username\Desktop>DISM.exe /Online /Add-Package /PackagePath:C:\Users\username\Desktop\Temp\windows10.0-kb5017095-x64.cab

Deployment Image Servicing and Management tool
Version: 10.0.14393.4169

Image Version: 10.0.14393.4169

Processing 1 of 1 - Adding package Package_for_KB5017095~31bf3856ad364e35~amd64~~14393.5285.1.0
[==========================100.0%==========================]

Error: 0x800f081e

The specified package is not applicable to this image.

The DISM log file can be found at C:\windows\Logs\DISM\dism.log


Attachments

Restart the machine.
Try to install update KB5017095 again.

Hi Peter,

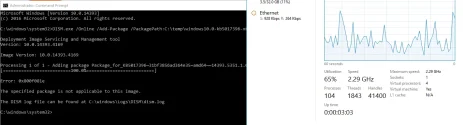

I have rebooted the Server and attempted the install and it has failed with the 0x800f081e error again, I have attached a screenshot and the latest CBS.


Attachments

  • CBS.zip
    CBS.zip
    87.2 KB · Views: 1
  • DISM error.webp
    DISM error.webp
    60.7 KB · Views: 2
Try to install following update:

Install Update with DISM
  1. Download the update MSU here: https://catalog.s.download.windowsu..._8db1a993e6115cf3b92d0159f562861ab16ee88d.msu
  2. Copy the MSU file to a convenient location (such as C:\temp).
  3. Click on the Start button and in the search box, type Command Prompt
  4. When you see Command Prompt on the list, right-click on it and select Run as administrator
  5. When command prompt opens, copy and paste the following commands into it, press enter after each

    cd C:\temp
    replace C:\temp with your path if different

    expand windows10.0-kb5017396-x64_8db1a993e6115cf3b92d0159f562861ab16ee88d.msu -f:* C:\temp

    DISM.exe /Online /Add-Package /PackagePath:C:\temp\windows10.0-kb5017396-x64.cab

  6. You should receive the message:
    The operation completed successfully.
    Make sure to allow the computer to restart if prompted.
  7. If you receive any other message:
    Post a screenshot of the Commandprompt window.
    Zip and attach the file C:\Windows\Logs\CBS\CBS.log

Hi Peter,

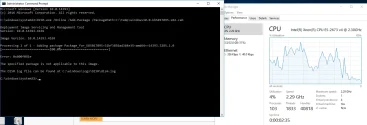

The installation has failed again with the same error, please see attached screenshot and CBS.


Attachments

  • CBS.zip
    CBS.zip
    213.5 KB · Views: 1
  • DISM error.webp
    DISM error.webp
    52 KB · Views: 3
Warning: This script was written specifically for this user, for use on that particular machine. Do not run this script on another machine.
  1. Download the attachment fixlist.txt and save it to your desktop.
  2. Right-click on FRST64.exe and select "Run as administrator".
  3. Press the Fix button.
  4. The tool will now process fixlist.txt.
  5. If for some reason the tool needs a restart, please make sure you let the system restart normally. After that let the tool complete its run.
  6. When finished, a log called Fixlog.txt will appear in the same directory the tool is run from.
  7. Attach the logfile Fixlog.txt to your next reply.


Attachments

FRST Registry Search
  1. Click the Start button and in the search box, type CMD
  2. When you see cmd.exe on the list, right-click on it and select Run as administrator.
  3. When command prompt opens, copy and paste the following command into it, press enter afterwards.
    Code:
    REG LOAD HKLM\COMPONENTS C:\Windows\System32\config\COMPONENTS

    Note: This loads your components hive which is what we want. Please keep the command prompt window open while you perform the remaining steps. You can minimize it if you wish but keep it open.
  4. Right-click on the file FRST64.exe and choose Run as administrator.
  5. Copy and paste KB5017095;KB5017396 into the Search box and click the Search Registry button.
  6. When the scan is complete, a message will display that 'SearchReg.txt' is saved in the same folder FRST was started from. Notepad will open this file also. Close Notepad and attach the file 'SearchReg.txt' to your next reply.
  7. You may close any remaining open windows now.

You must log in or register to reply here.

Has Sysnative Forums helped you? Please consider donating to help us support the site!

Back
Top
